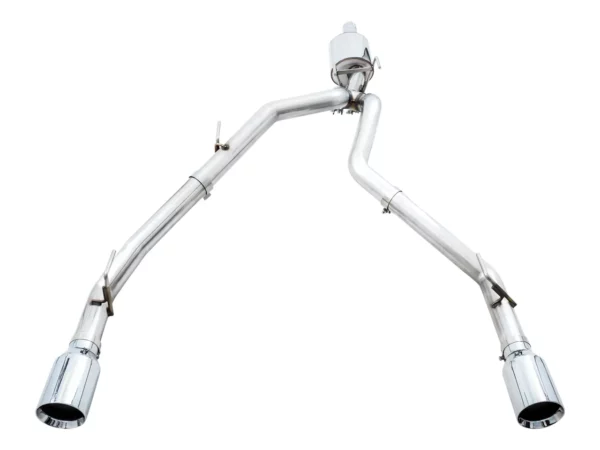

AWE 0FG Exhaust system for RAM 5.7

The 0FG is a 3-inch T304L stainless steel catback exhaust system with AWE's patented Drone-Cancelling 180 Technology®.
Combined with the precise fit, premium rigidity and customized tailpipe options for all bumper variations, this is the best sounding exhaust on the planet™ for the 4th generation RAM 5.7.

The T304L stainless steel from the USA with a wall thickness of 0.065″ runs seamlessly from front to back and connects directly to the factory exhaust system.

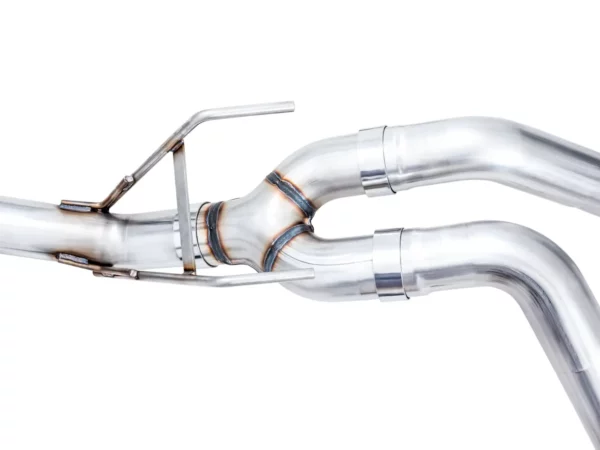

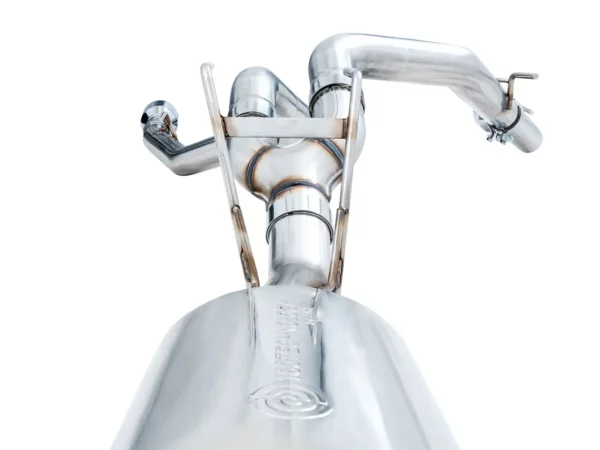

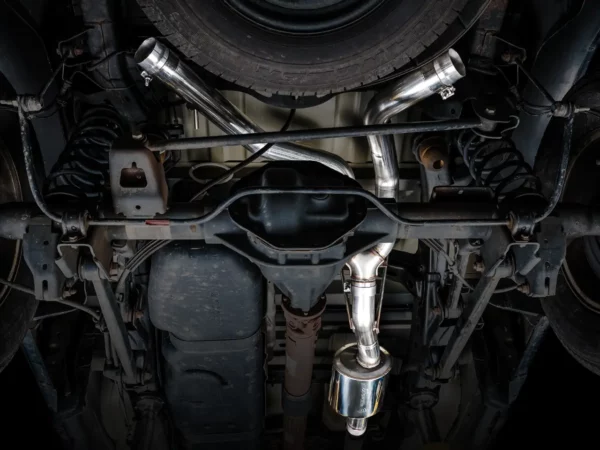

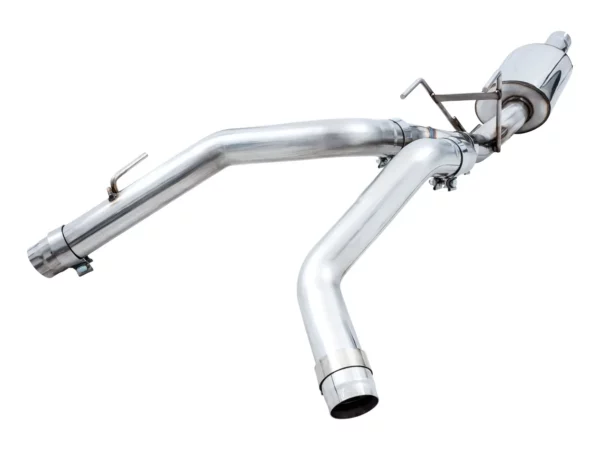

After exiting the 180 Technology® resonator, the exhaust splits into two 3-inch pipes up to the tailpipes.

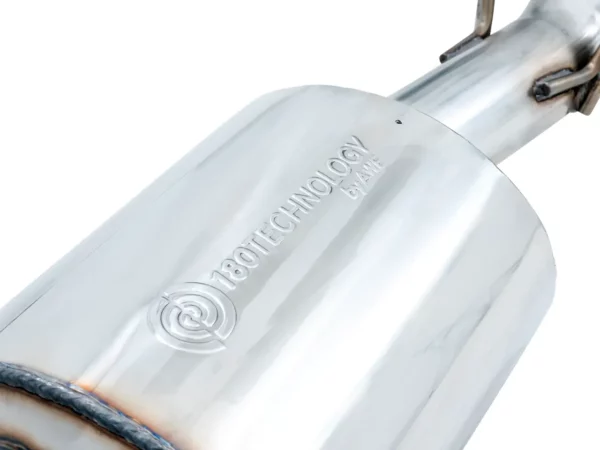

Perfect sound, thanks to AWE 180 Technology®.

The patented AWE 180 Technology® ensures that the aggressiveness is kept out of the rear of the RAM and out of the cab.

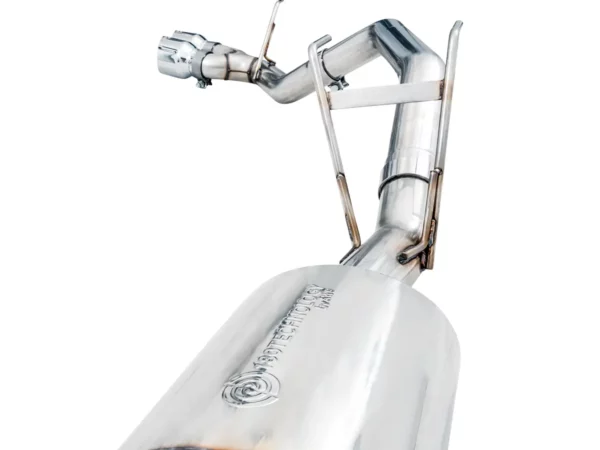

When the exhaust gases emerge from the 5.7 liter engine and flow into a resonator equipped with AWE 180 Technology®, they are directed through strategically placed openings and into reflection chambers. The sound waves carried by the exhaust gases bounce off the walls of the reflection chambers.

By controlling the size and position of the openings and the chambers, we also control when the sound waves exit the chambers. The specific time at which the reflected sound waves re-enter the main exhaust stream creates a 180-degree phase-shifted sound wave that cancels out problematic frequencies.

Bumper and tailpipe options

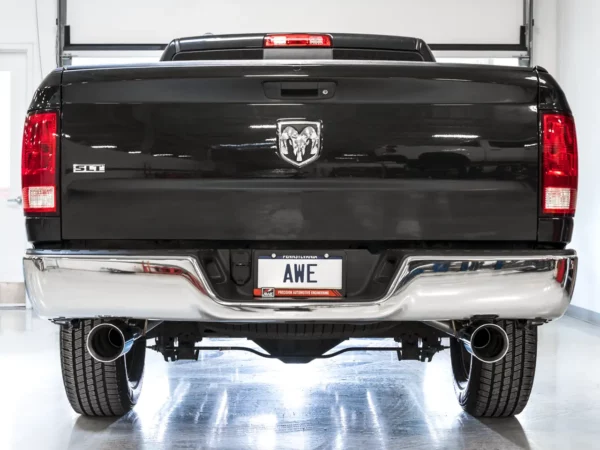

Bumper without cut-outs:

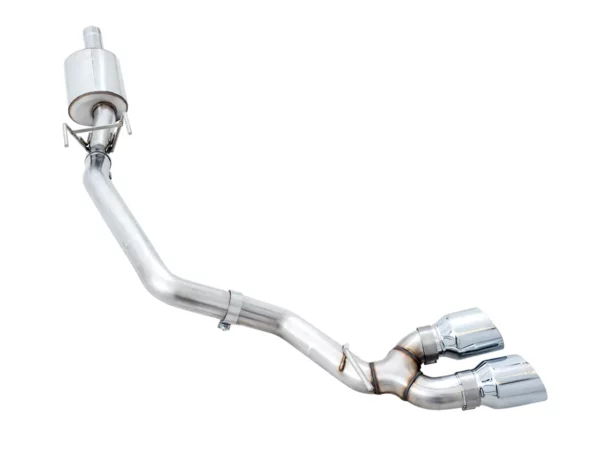

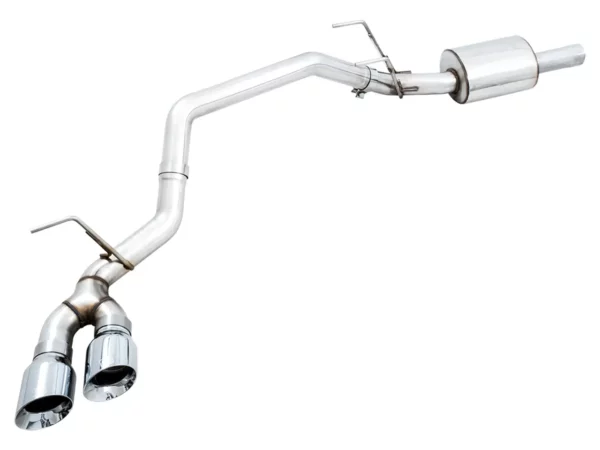

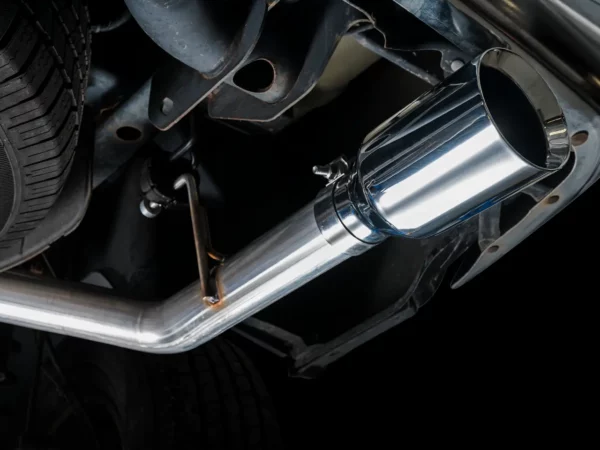

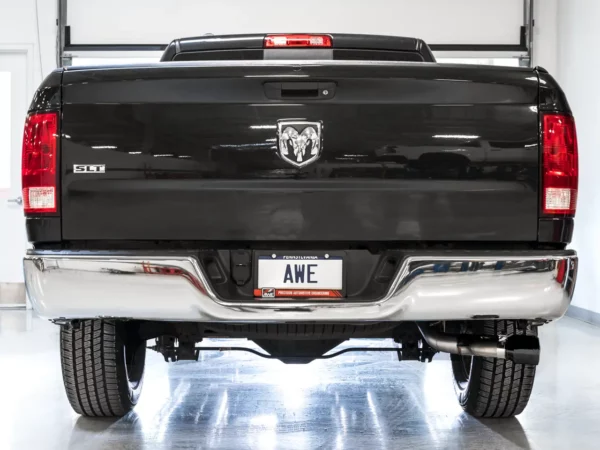

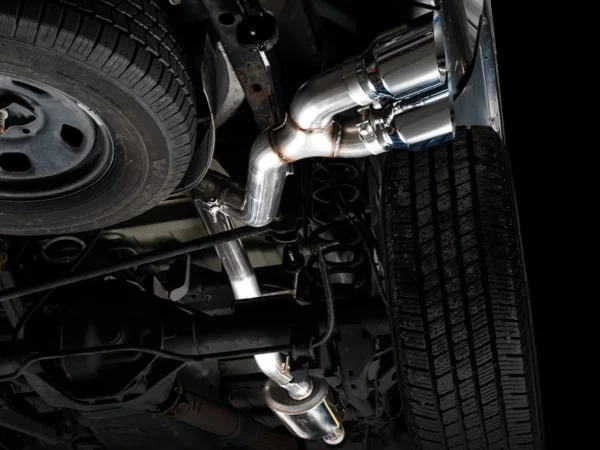

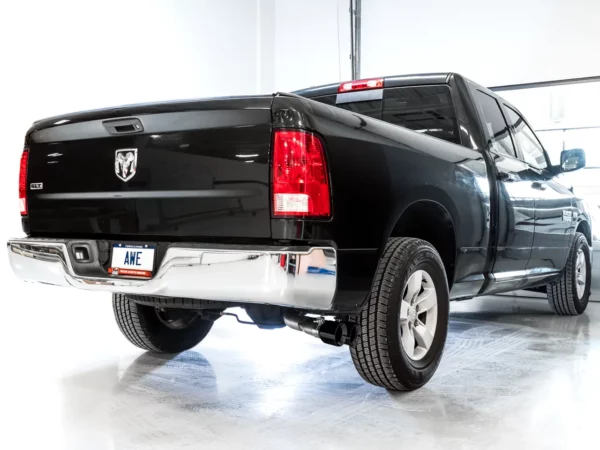

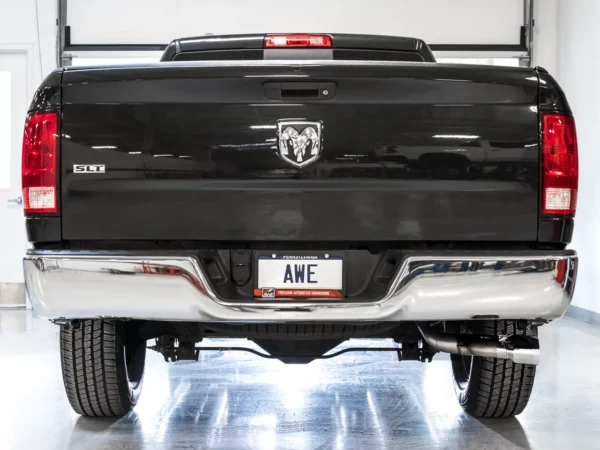

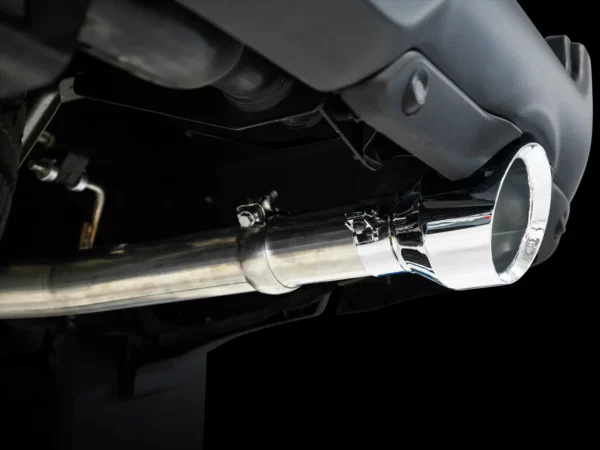

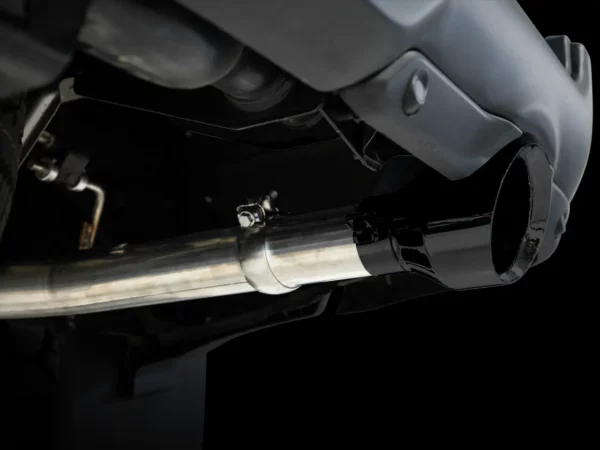

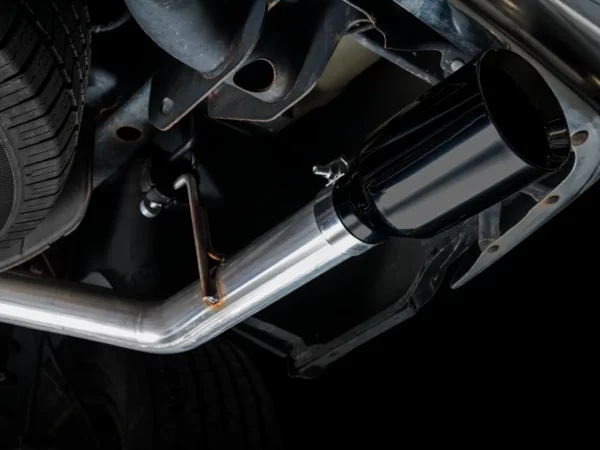

• Passenger-side single outlet, double-walled 4.5-inch tailpipes with slash cut in diamond black or chrome silver

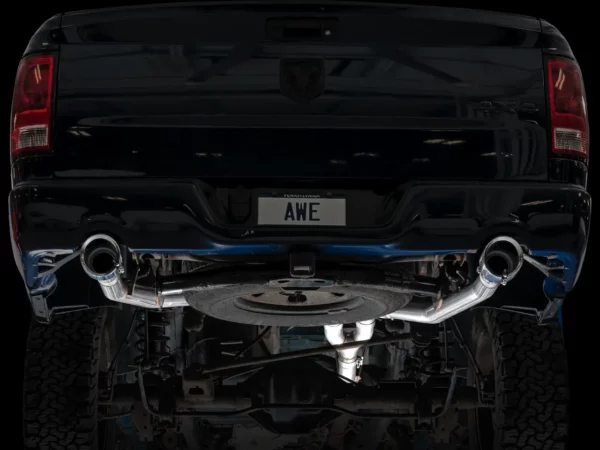

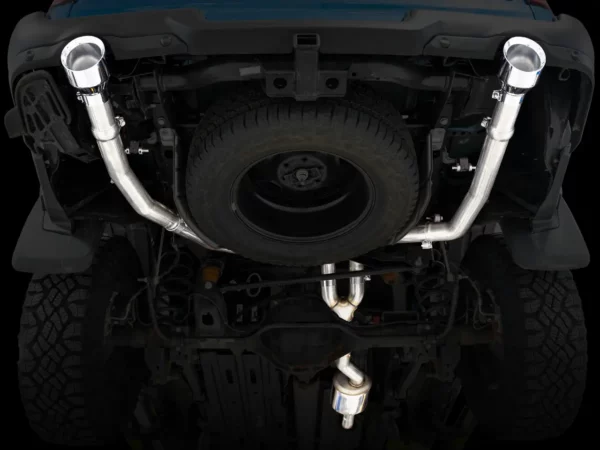

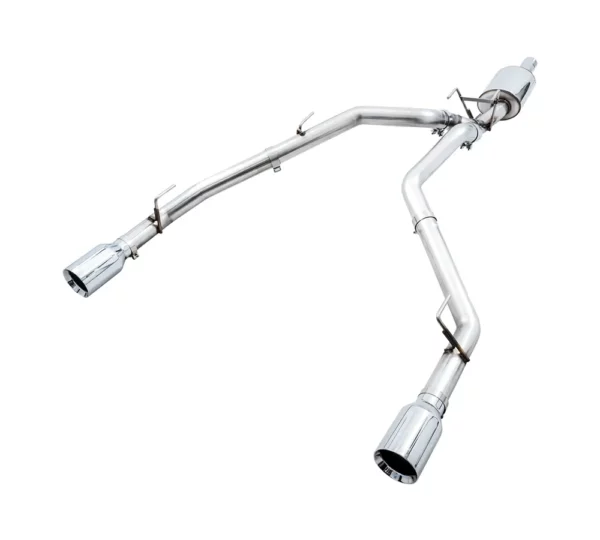

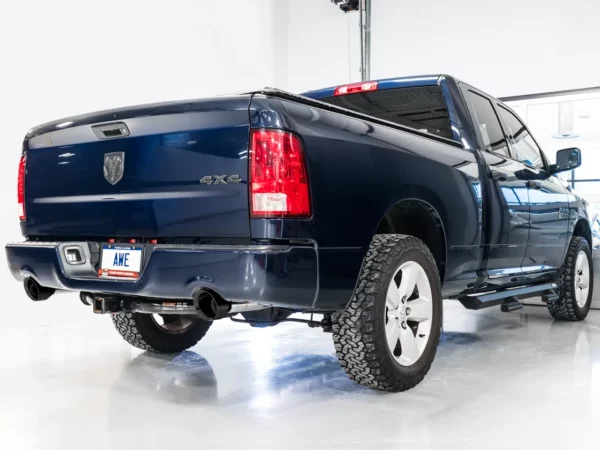

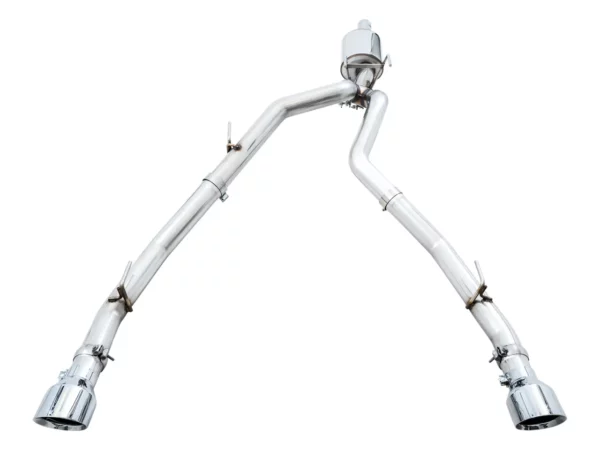

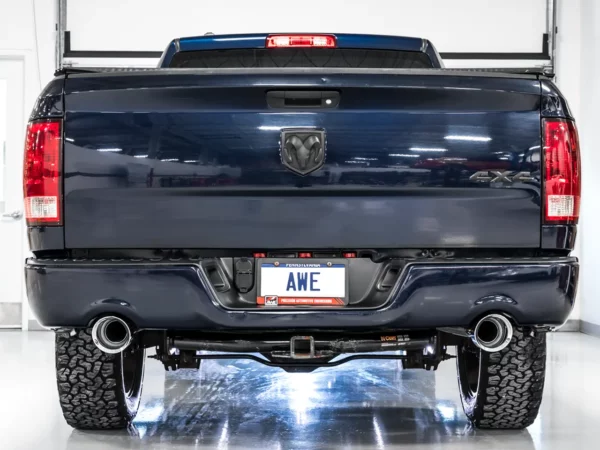

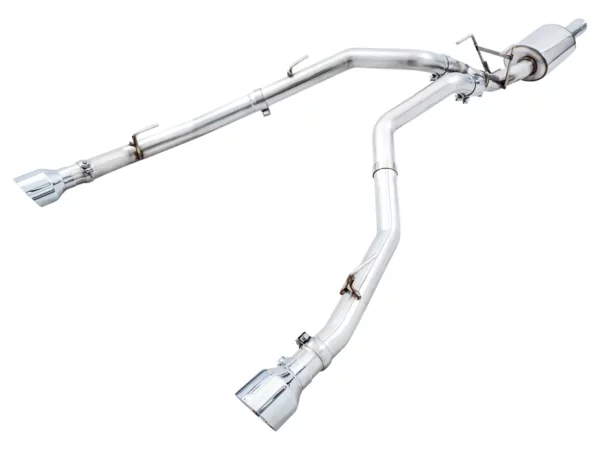

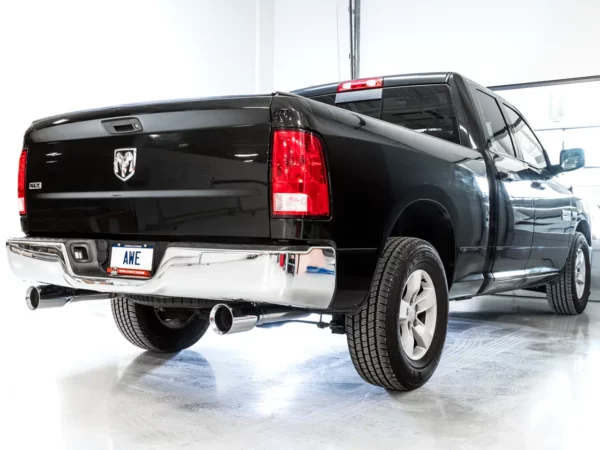

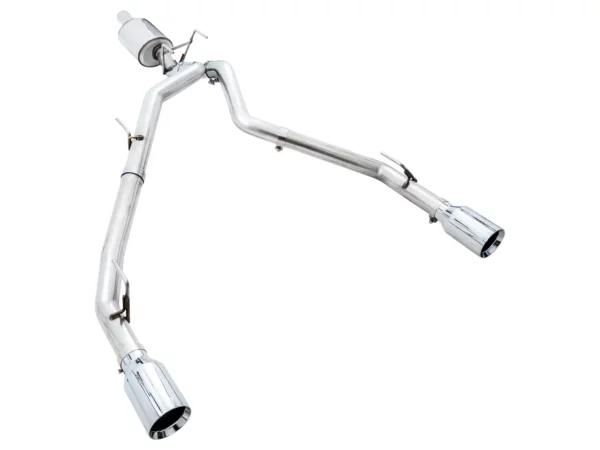

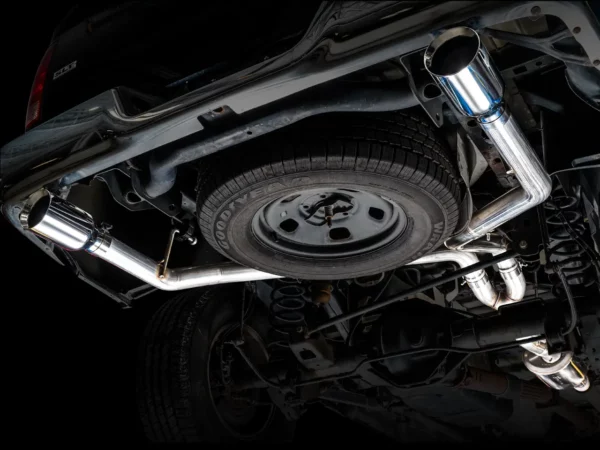

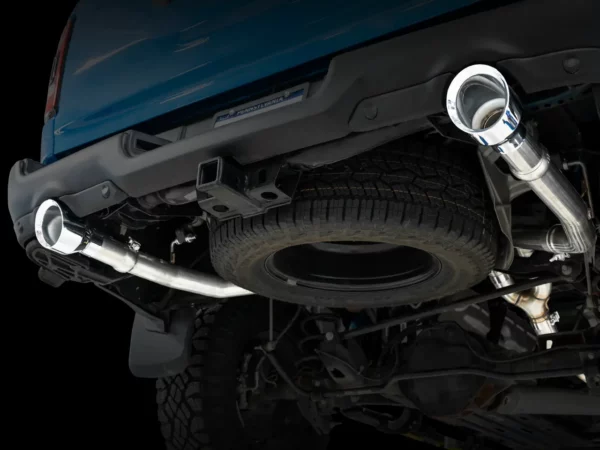

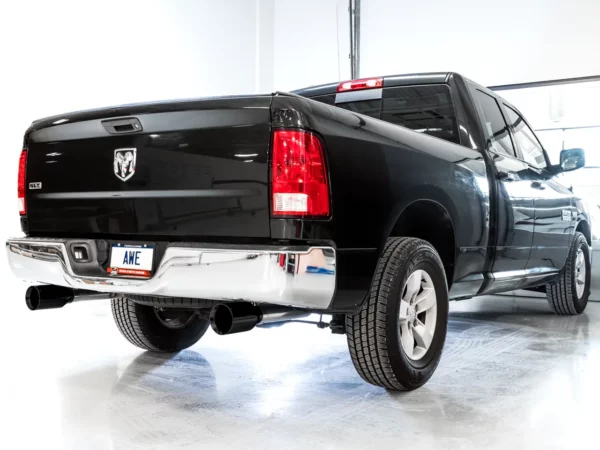

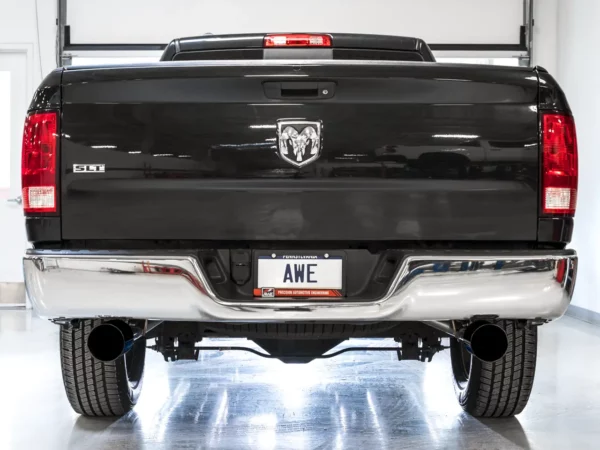

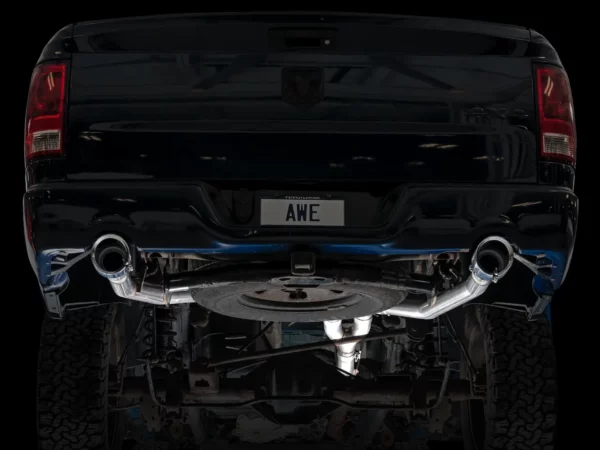

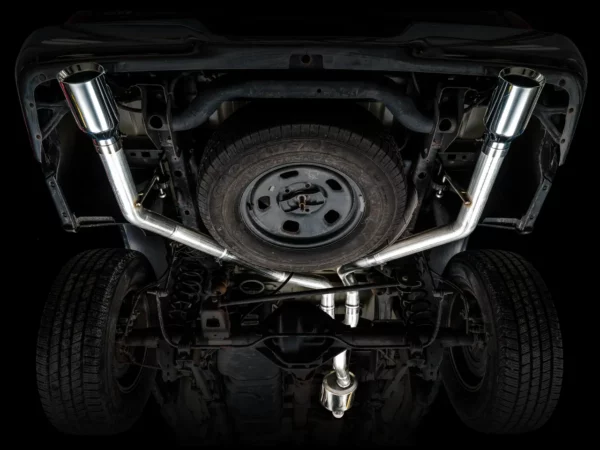

• Double rear outlet, 5″ double-walled, straight-cut tailpipes in diamond black or chrome silver

Bumper with cut-outs:

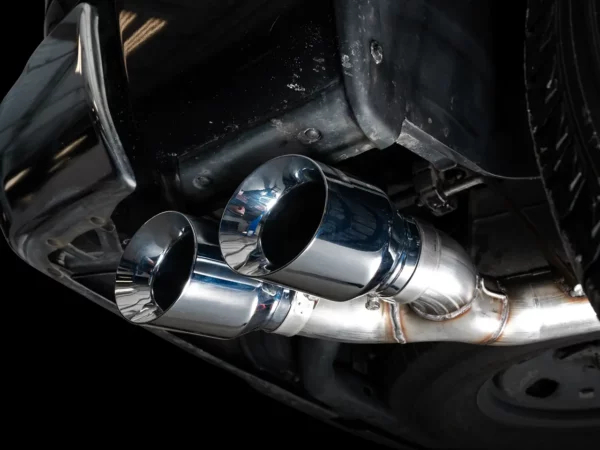

• Double rear outlet, 5″ double-walled tailpipes in slash-cut design in diamond black or chrome silver

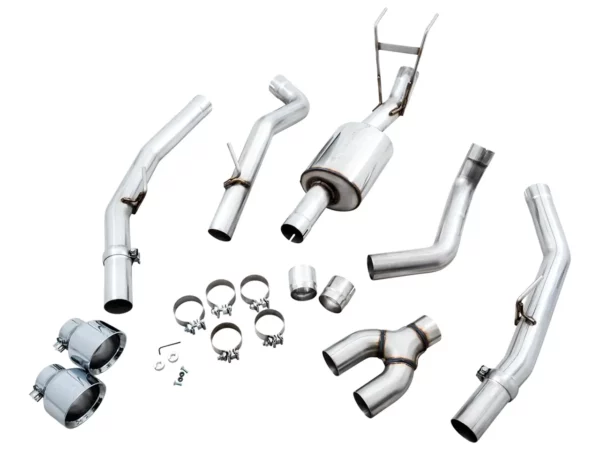

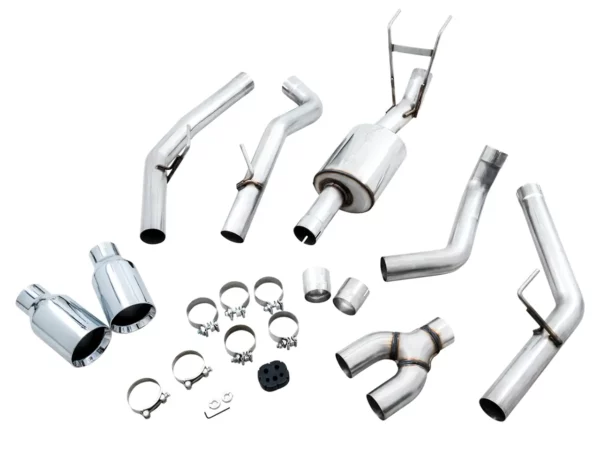

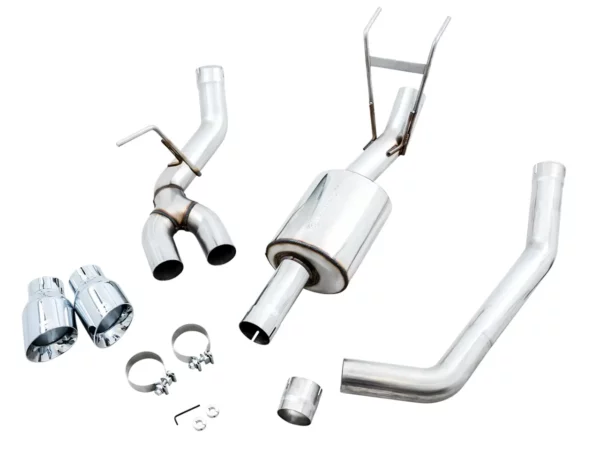

What is included in the scope of delivery?

Complete 0FG rear silencer, two tailpipes in the desired design, BashGuard (if applicable) and all mounting material required for installation.

Properties

• 3″ Catback configuration
• Special configurations for all bumper types: double rear outlet and single side outlet
• With AWE's patented drone-canceling solution, 180 Technology®
• Handmade from CNC-bent, US-made T304L stainless steel with 0.065″ wall thickness
• Double-walled 5″ tailpipes with bevel cut for bumpers with cut-outs

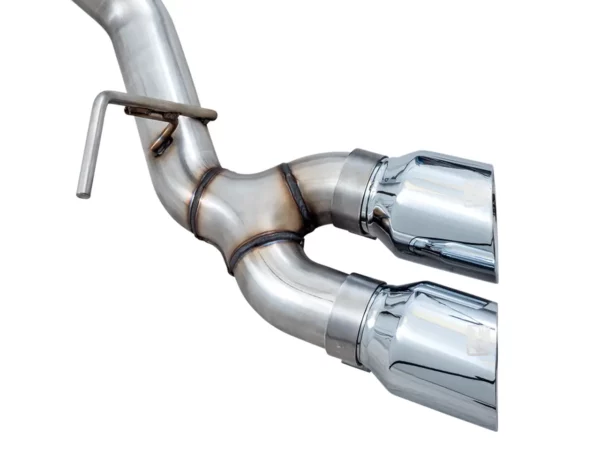

• Single side exit with double 4″ tailpipes with angled cut or double real exit with straight 5″ tailpipes for flat bumpers (without cut-outs)
• All flat bumper configurations are supplied with AWE BashGuards
• Designed for life, ready for any scenario on this planet
• Less is more: Clean, straightforward design for maximum performance
• Easy to install, no cutting required
• Perfect fit

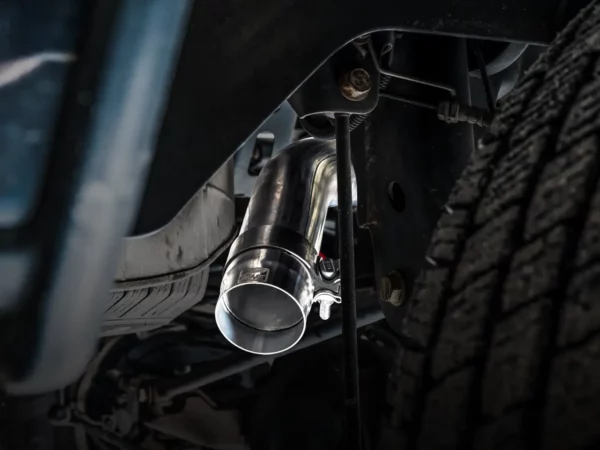

AWE BashGuard

Supplied as standard with flat bumper configurations (no cut-outs), the AWE BashGuard is designed to provide safety for riders who frequently travel over rough terrain with a simple conversion that shortens the exhaust so that it terminates on and above the rear axle.

Simply unscrew the rear section of the exhaust and fit the included Bash Guard in its place, and you've got protection from rocks and the occasional comet. Tailpipes when you need them, protection when you don't. It's as simple as that.

Fits:

The AWE 0FG catback exhaust is suitable for these cab and cargo bed combinations:
Crew Cab with 67.4″ loading area
Quad Cab with 76.3″ loading area
Standard Cab with 96.3″ loading area
