KW coilover suspension V2 for Dodge Viper SRT-10

Properties:

•  Lowering VA/HA (mm): 20-40/20-40
• Version: V2
• Hardness adjustment: Rebound
• Material: Stainless steel
• Adjustment VA/HA: thread/thread
• Approval: Parts certificate (§19.3)
• rebound damping technology adjustable in 16 precise clicks
• Stainless steel technology inox-line
• Individual, stepless lowering
• Tested adjustment range
• Ready-to-install complete solution
• High-quality components for a long service life
• Complete documentation for easy use

Fits:

Conditions / notes:

• VA + HA height-adjustable (threaded struts)
• On vehicles with electronic damper control, this must be deactivated. Electronic kit for decommissioning is included in the scope of delivery.

Sportiness, more body control or more riding comfort and outstanding looks. With adjustable rebound damping

The KW V2 coilover suspension is the suspension for the experienced sports driver who wants to make adjustments to the setup in addition to individual vehicle lowering. The individually adjustable rebound damping ensures a better connection on fast road sections and easier vehicle control. In addition, the ride comfort on rough roads can be significantly influenced by adjusting the rebound damping.

Setup - factory pre-configured damping setup with adjustable rebound damping

With the KW V2 coilover suspension, you as an experienced sports driver can influence the handling and comfort yourself with the 16-click adjustable rebound damping ("TVR-A" technology). This allows you to tune the KW dampers to be firmer or more comfortable without affecting the bottom valve of the compression stage.

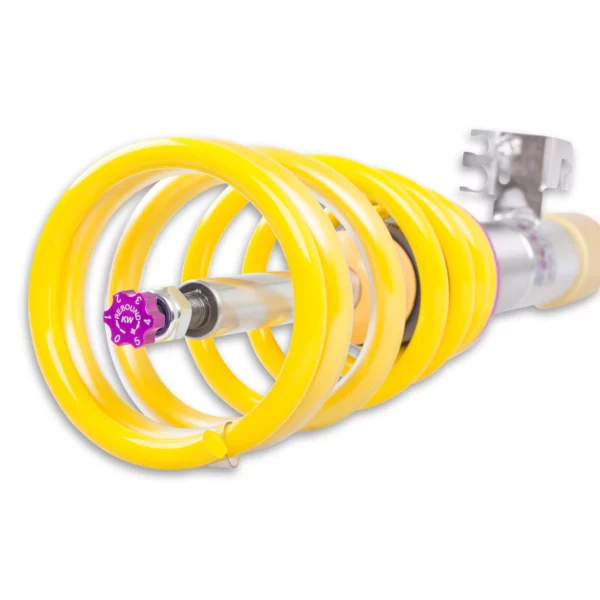

TVR-A rebound damping:
The two-stage patented "TVR-A" technology allows the low volume flows to flow through an adjustable conical low-speed bypass at low damper speeds and the main rebound valve to open for the high volume flows at higher piston speeds. This results in a significant increase in ride comfort without affecting the high speed in the safety-relevant range. There are 16 precise clicks available for individual adjustment, so you can choose between more comfort or more body control.

Stepless lowering

The KW V2 coilover suspension allows maximum or individual lowering within the tested adjustment range. Thanks to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the stepless lowering can be varied quickly and easily even after years.

The benchmark for coilovers

As with all KW coilover suspensions, the KW engineers develop the vehicle-specific KW damper tuning, which is appreciated by car enthusiasts worldwide, in extensive test cycles on the Nürburgring Nordschleife and in the test center on the KW 7-post driving dynamics test bench. With a KW coilover suspension you experience your car more directly and dynamically.

After all, you are not buying just any coilover suspension, but a KW coilover suspension that has been specially developed and tuned for your vehicle type. As a manufacturer, KW only uses its own resources, high-quality components and the same damper technology as mass-produced manufacturers. With the KW V1, the rolling and pitching movements of the vehicle body are reduced during compression, allowing you to benefit from unadulterated directness and sportier handling when driving.

Experience for your driving pleasure

For over 20 years, KW has been the market leader and innovation driver for individual suspension solutions for the road and in racing. No matter where in the world, sporty drivers, car manufacturers and tuners rely on our KW coilovers "Made in Germany".

Each KW coilover suspension is subjected to extensive load tests during production and is developed and manufactured directly at the company headquarters in Fichtenberg, Swabia, in order to meet the high standards of KW quality management.
As a German manufacturer, it is a matter of course for KW to provide a multi-year warranty on its KW coilover suspension kits, which exceed OEM quality and cover over 4,600 applications.
